Automatic Panel lamination line for PVC, PET &Paper

Short Description:

This machine is for PUR hot melt glue which for do the lamination for various kinds of material. The PUR hot melt glue will be a quick reaction for the adhesive. This laminating machine is applying to the decorative , outside door , cabinet ,wardrobe and high glossy panel.


Product Detail

Product Tags

Material:

Panels: particle board, MDF board, WPC board, PVC board, plywood, plastic board, gypsum board foamed plastic board, zinc board, aluminum board, steel board, etc.

Cover material: PET, PVC, Paper , HPL, CPL, Acrylic, etc.

Glue: PUR hot melt glue

l The Electromagnetic Tension System can control the tension quickly and convenientlyAll upper press rollers rise by Electromagnetic controller and you can adjust distance between the upper and lower rollers to supply enough uniform pressure exactly, so it's suitable for different thickness of film (covering material) and panel. A step locking device avoids sliding table to move when no work.

l Advanced PUR Glue spreading System can make sure of reliable glue spreading, adopted to 5 rollers to spread glue to keep the surface more uniformity and smoothly, and controlled by Electromagnetic controller to easy operation.

l Infrared Heating & Drying System equipped with aluminum cover and intelligent temperature controller and automatic sensor, it can make sure of constant exact temperature and certain viscosity for glue to intensify stickiness, improve working efficiency and quality of products.

l Infrared Heating & Drying System equipped with aluminum cover and intelligent temperature controller and automatic sensor, it can make sure of constant exact temperature and certain viscosity for glue to intensify stickiness, improve working efficiency and quality of products.

l The Electromagnetic Tension System can control the tension quickly and conveniently.

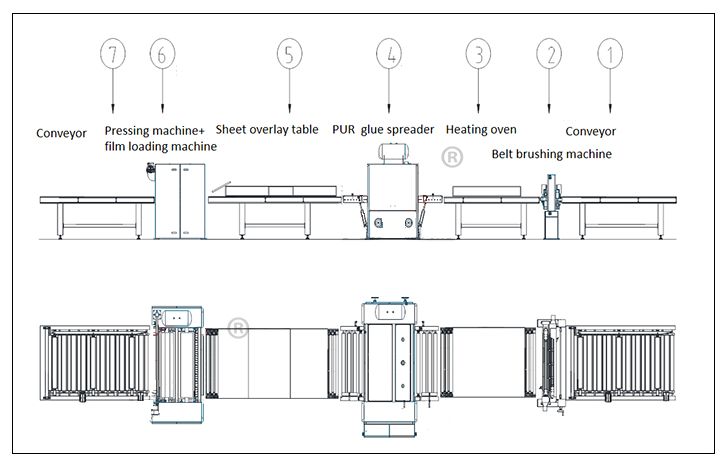

PET &Paper1

Model PUR-1300
Panel size 1220X2440/2750/3600
Work thickness 2-40mm
Work speed 5-17m/min
Feeding power 20.04kw
Heating power 76 kw
Overall size (L)17 X (W)3 X(H)3.5m
Adhesive PUR



PET &Paper2
PET &Paper3
PET &Paper4
PET &Paper5
