Three-line drilling machine for furniture and cabinet

Short Description:

Three-drilling machine is a type of multi-drilling machine and applying to wardrobe, cupboard, office furniture etc. It can make dozens of holes once. This drilling machine can work at 0 to 90 degree. It can make hole on surface and side of boards at same time. This machine has a strong construction. The machine body is durable and doesn’t deform after heat treatment. This machine greatly improves the work efficiency. This type of drilling machine is a good choice for a large furniture factory. It can  reduce working cost.


Product Detail

Product Tags

Detail

Three-drilling machine is a type of multi-drilling machine and applying to wardrobe, cupboard, office furniture etc. It can make dozens of holes once. This drilling machine can work at 0 to 90 degree. It can make hole on surface and side of boards at same time. This machine has a strong construction. The machine body is durable and doesn’t deform after heat treatment. This machine greatly improves the work efficiency. This type of drilling machine is a good choice for a large furniture factory. It can  reduce working cost.

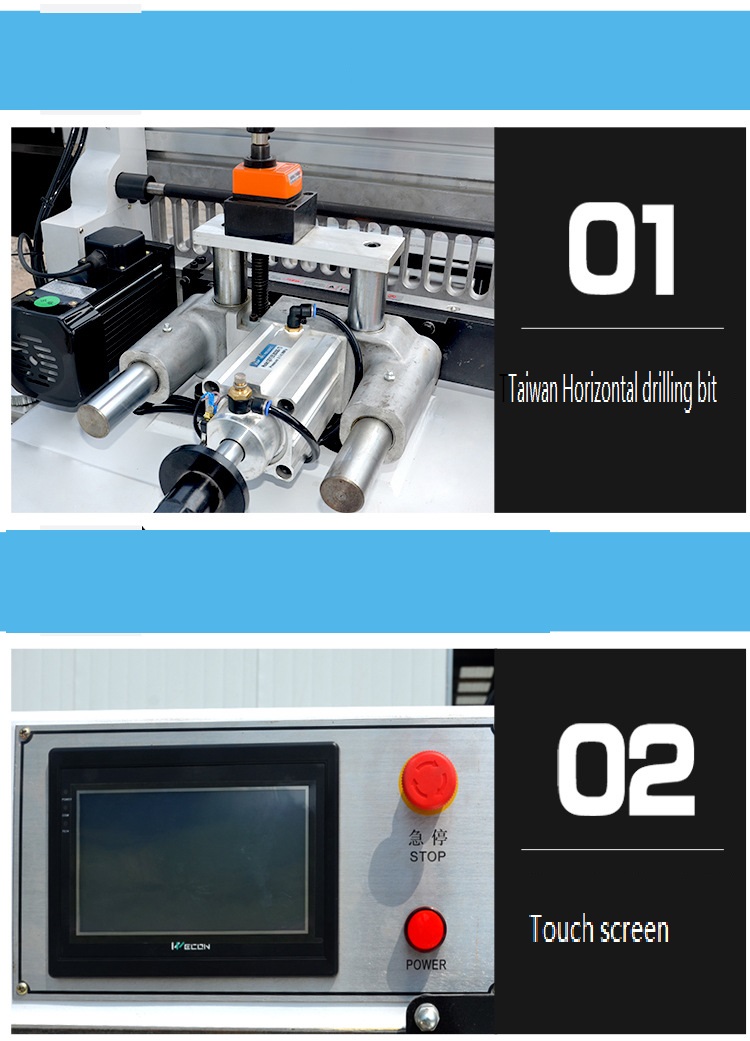

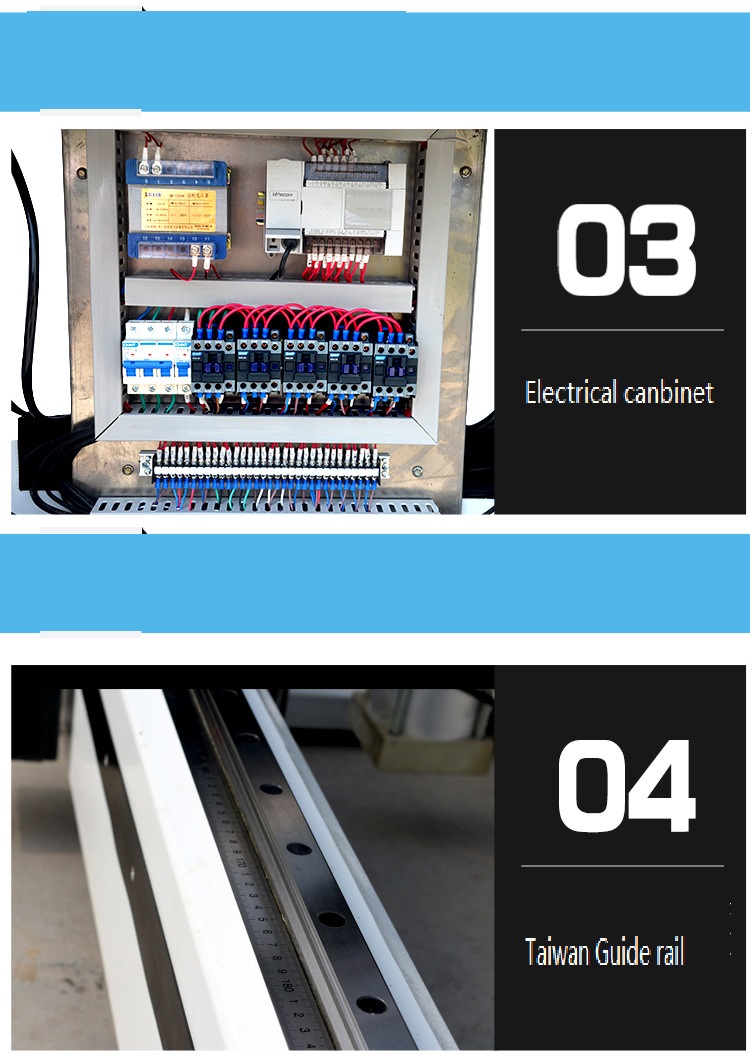

● The multi-drilling machine adopts the quality touch screen and PLC industrial control system, which has strong functions and low failure rate.

● The multi-boring machine has a large drilling range, and all the drill bits adopt quick connectors, which is convenient and fast.

● The drilling depth and drilling distance of the row drill are all controlled by photoelectric induction switches, so the positioning is fast and accurate.

● This multi- drilling machine adopts imported original famous brand drill row, linear guide rail and slide block, which are durable.

●The parts of the boring machine are made of high-quality steel, which will never deform after high-temperature annealing (elimination of internal stress).

●The three–line boring machine is equipped with a size digital calculator to improve work efficiency.

13275417119_2120931668
uipped

Technical Data

Model MJ73223
Max hole diameter 35mm(single bit)
Max drilling depth 60mm
Max processing hole distance 140-1700mm
Spindle speed 2800rpm
Total number of shaft 21*3
Air pressure 0.6-0.8Mpa
Total power motor 4.5kw
Overall size 3000*2500*1600mm
Weight 1000kg
digit

13275393957_2120931668 13357361577_212093166813313530752_2120931668



3725daaa0eb11dac6e9924bd69c611f

Four-line drilling machine for wardrobe, cupboard

MZ73224
Model MJ73224
Max hole diameter 35mm(single bit)
Max drilling depth 60mm
Max processing hole distance 140-2500mm
Spindle speed 2800rpm
Total number of shaft 11*4+21*2
Air pressure 0.6-0.8Mpa
Total power motor 9kw
Overall size 4000*2500*1600mm
Weight 1500kg



Six-line drilling machine for wardrobe, cupboard

MZ73216
Model MJ73224
Max hole diameter 35mm(single bit)
Max drilling depth 60mm
Max processing hole distance 140-3500mm
Spindle speed 2800rpm
Total number of shaft 21*6
Air pressure 0.6-0.8Mpa
Total power motor 9kw
Overall size 4500*2500*1600mm
Weight 1800kg
