Profile sanding machine Curved surface sander

Short Description:

Woodworking machinery curved surface sanding machine are suitable for various solid wood cabinet door panels, assembled doors, wardrobe doors, stair treads, solid wood screen panels, indoor door panels, bamboo products, and other surface sanding treatment configurations. Different types of sanding roller and disc combinations can meet diverse processing requirements. A more reliable and reasonable design structure can increase the machine’s service life by 30%. The operation is convenient and simple, Easy to learn and use


Product Detail

Product Tags

Technical Data:

Working Width 1000mm 1300mm
Min.working length 500mm 500mm
Working Thickness 2-100mm 2-100mm
Polish roller Speed Frequency alternator Frequency alternator
Feeding Speed 2.5-12.5m/min 2.5-12.5m/min
Total Motor Power 28KW 30KW
Overall Dimensions (L*W*H) 4100*1800*2100mm 4100*2000*2100mm
Net Weight 2500kg 2800kg

Features:
1.The curved surface sander is a type of high-precision woodworking sanding equipment developed independently on the basis of introducing new European wood processing technology to sand and polish the surface of wooden products.

2. This sander is a profile sanding machine. It is widely used for polishing and polishing straight or irregular curved panels, wooden lines and wooden strips, such as solid wood, primer board, density board, veneer board, and various complex surfaces such as vertical surfaces, irregular line profiling, and irregular curved surfaces.

3. The sanding belt speed is controlled by a frequency converter and can be automatically adjusted according to different sanding workpieces.

4. The curved surface sanding machines have uniform conveyor belt speed. The conveyor belt is controlled by a stepless speed control motor, and suitable feeding speed can be selected according to different workpieces to ensure the smoothness and smoothness of the sanded workpieces.

5. The curved surface sanding machines are easy to operate, convenient and fast, with high production efficiency and good polishing quality. Compared with traditional and old sanding methods, they can save a lot of time and human resources, and reduce production costs.

6. Our company can also customize various special models of sanding machine equipment according to the specific needs of customers

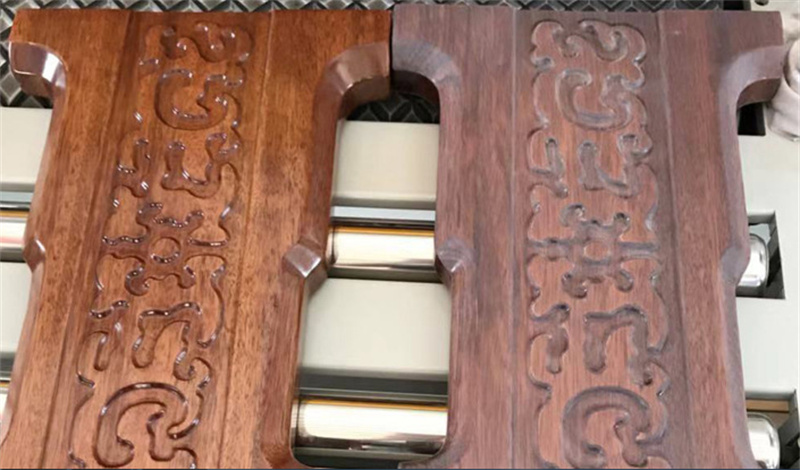

Finished products:
sander (1)

sander (2)
